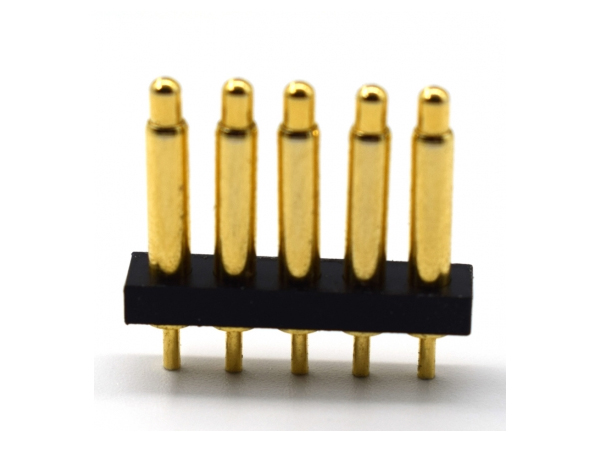

5pin pogo pin connector
Consultation hotline 159-2067-7287
Common specifications of Pogo pin:
Rated current: 1.0A (according to customer requirements)
Rated voltage: DC 12V (according to customer requirements)
Contact resistance: 50mΩ (100mΩ for reverse drilling)
Life test: 10000 times (according to customer requirements)
Elasticity requirement: Signal pin ≧60g Min at Max working height
Power pin ≧90g Min at Max working height
Salt spray test: 48H or 72H or 96H
Solder ability:Reference Doc: EIA-364-52
Vibration test Random Vibration: EIA-364-28, Test condition II
